chart_kit

Reusable line, vertical bar, pie, horizontal bar, radar, and bubble chart painters for DartNative apps — built entirely with CustomPaint/CustomPainter/Canvas, no third-party chart package required.

Each painter takes plain data (a List<double>, or a small typed value object for radar/bubble), so it drops into any CustomPaint you already have — feed it real data from your own API, or mock data while you build. The line, vertical bar, horizontal bar, and pie painters also support optional gradient fills and a translucent "glass" background panel.

Screenshots

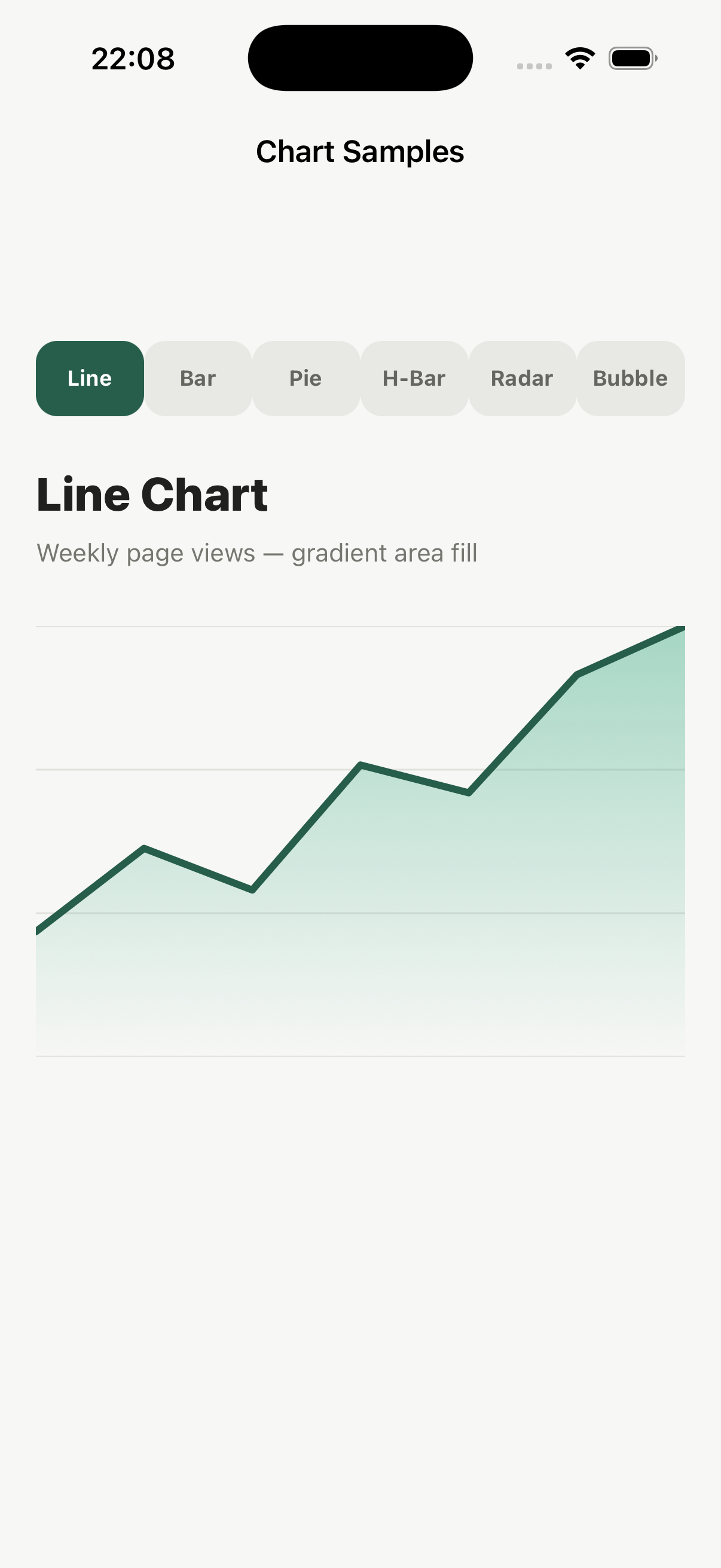

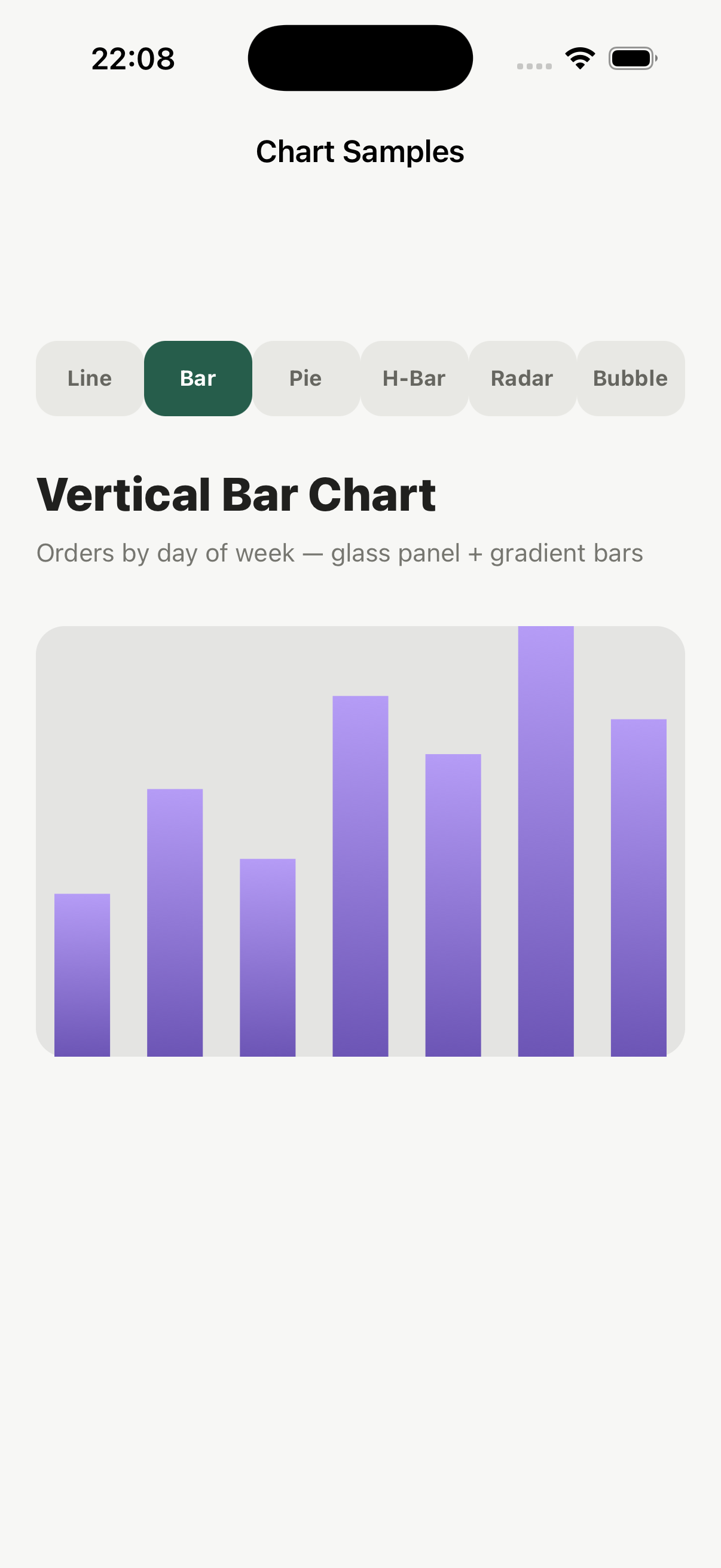

Line	Vertical bar

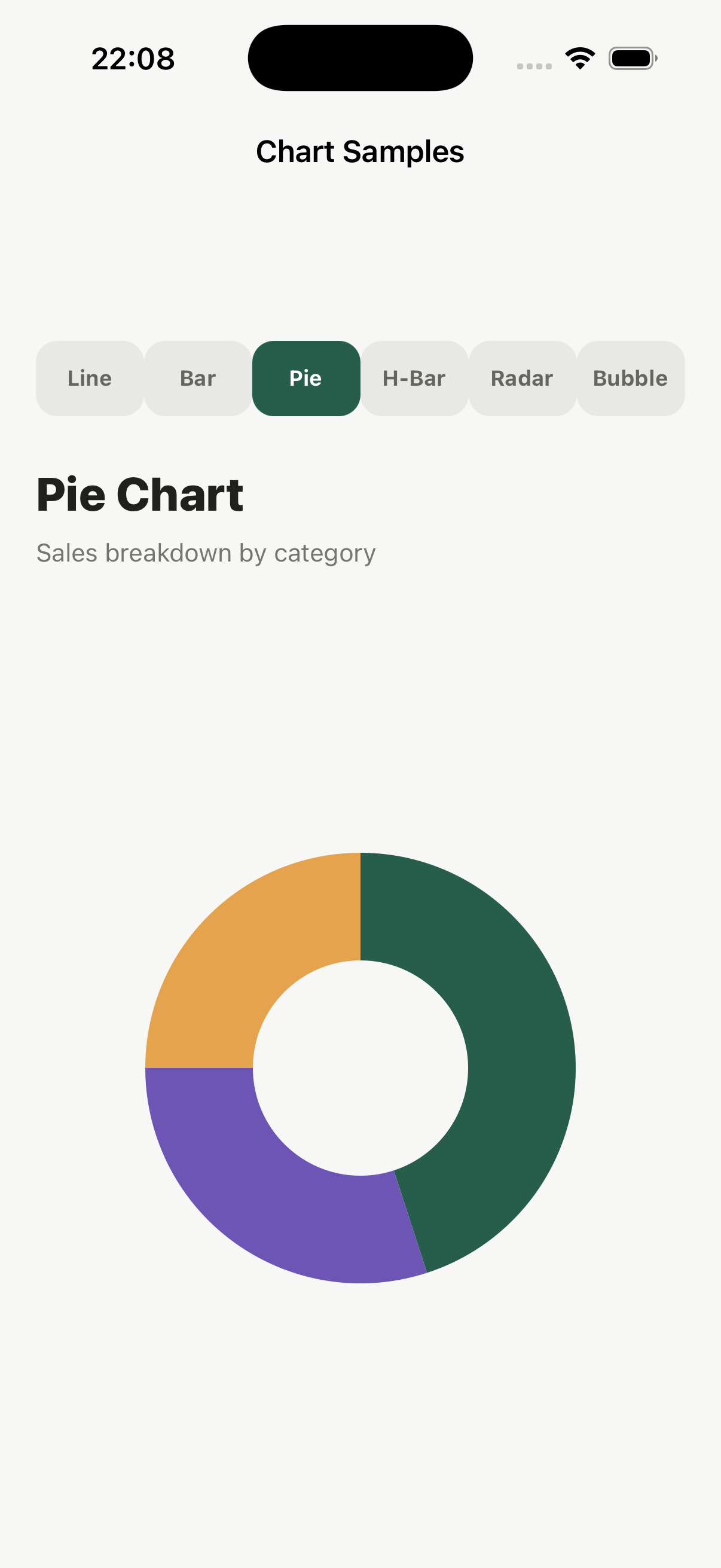

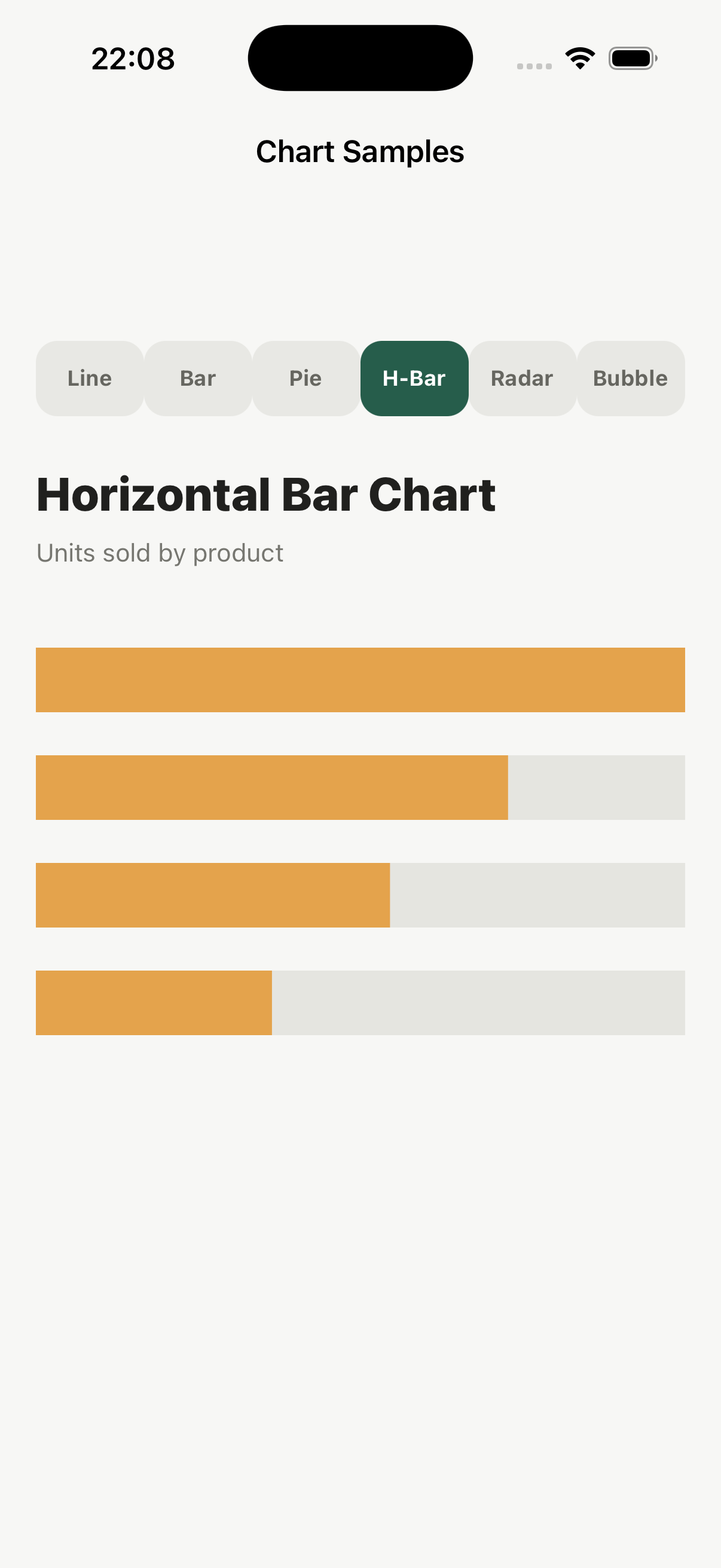

Pie	Horizontal bar

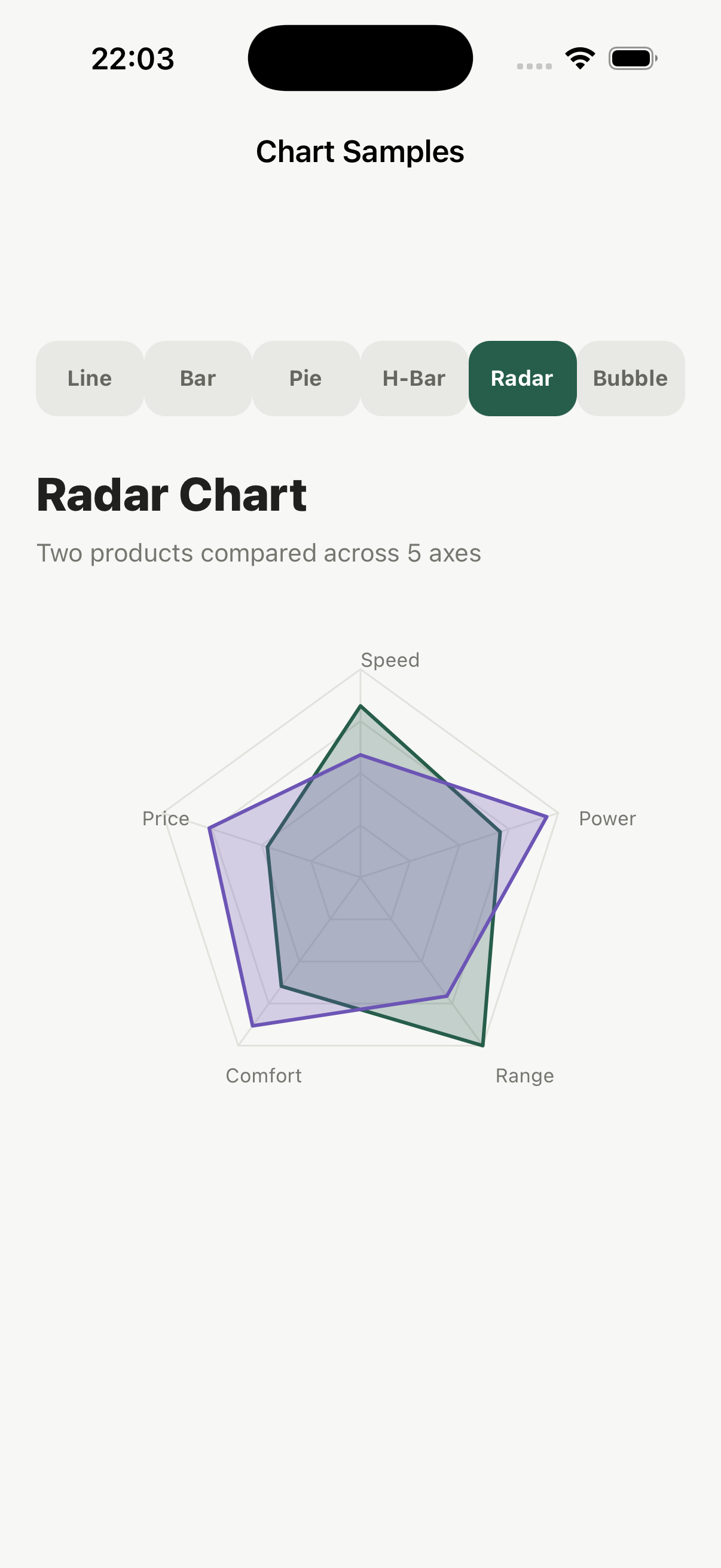

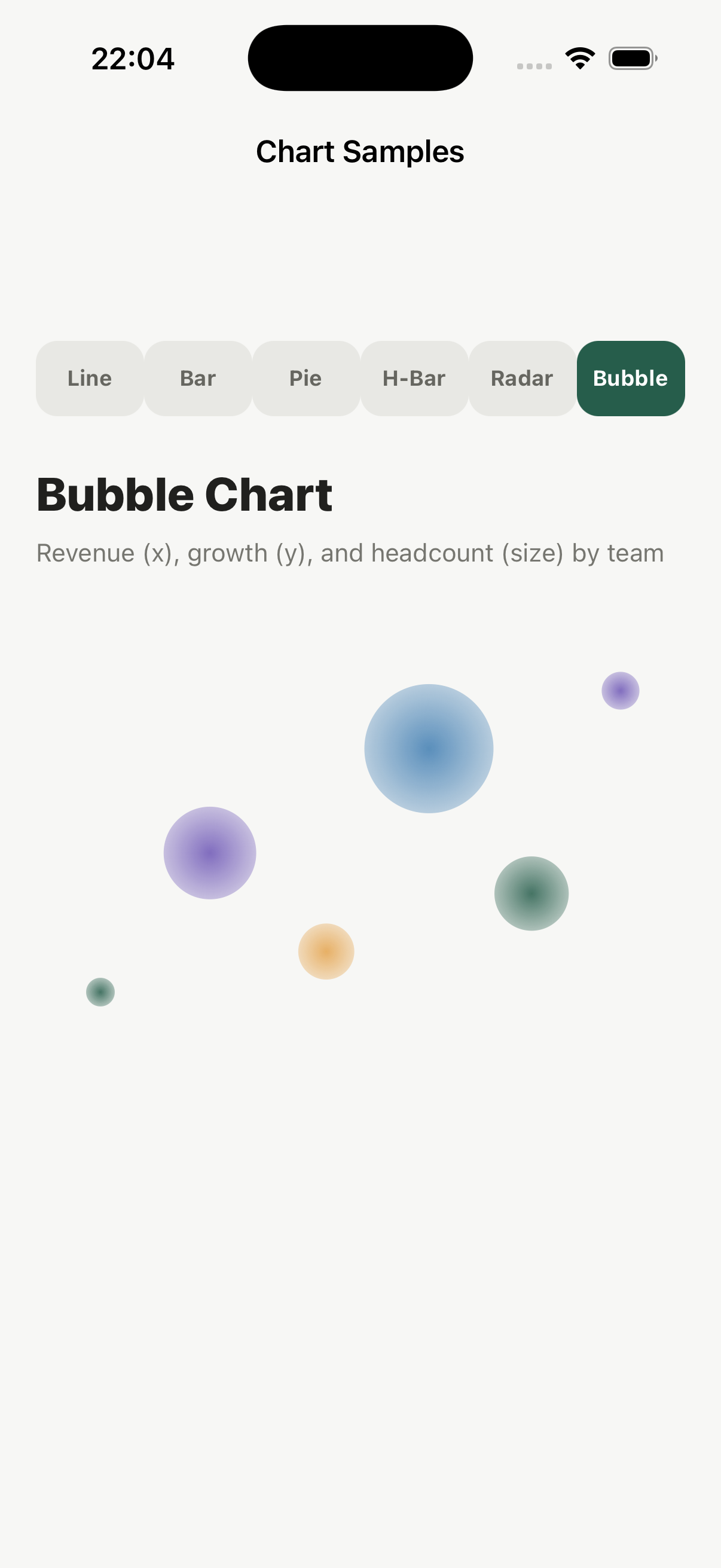

Radar	Bubble

Install

Add a dependency on chart_kit in your app's pubspec.yaml. Once published to dartpub.dev, a plain version dependency resolves it the same way the DartNative framework itself does:

dependencies:
  chart_kit: ^0.2.0

Then fetch it with:

dn pub get

Usage

import 'package:chart_kit/chart_kit.dart';

CustomPaint(
  size: const Size(320, 240),
  painter: const LineChartPainter([18, 30, 24, 42, 38]),
)

The other painters take the same shape of input:

CustomPaint(painter: const VerticalBarChartPainter([28, 46, 34, 62]));
CustomPaint(painter: const PieChartPainter([45, 30, 25]));
CustomPaint(painter: const HorizontalBarChartPainter([88, 64, 48, 32]));

CustomPaint(
  painter: RadarChartPainter(
    const ['Speed', 'Power', 'Range', 'Comfort', 'Price'],
    const [
      RadarSeries(label: 'Model A', color: Color(0xFF265D4B), values: [70, 60, 85, 55, 40]),
      RadarSeries(label: 'Model B', color: Color(0xFF6C55B5), values: [50, 80, 60, 75, 65]),
    ],
  ),
);

CustomPaint(
  painter: const BubbleChartPainter([
    BubblePoint(x: 12, y: 18, size: 8),
    BubblePoint(x: 60, y: 60, size: 30),
  ]),
);

Gradient fills and glass backgrounds

LineChartPainter, VerticalBarChartPainter, HorizontalBarChartPainter, and PieChartPainter all accept an optional backgroundColor — typically a translucent color — that draws a rounded "glass" panel behind the chart:

LineChartPainter(values, backgroundColor: const Color(0x14000000));

LineChartPainter additionally accepts areaGradientColors (2+ colors, top to bottom) to fill the area under the line, and VerticalBarChartPainter/HorizontalBarChartPainter accept barGradientColors (2+ colors, along the bar's length) to fill each bar with a gradient instead of a flat color:

LineChartPainter(
  values,
  areaGradientColors: [Color(0x662CA57B), Color(0x002CA57B)],
);
VerticalBarChartPainter(
  values,
  barGradientColors: [Color(0xFF6C55B5), Color(0xFFB59CF6)],
);

Gradient fills use a linear shader; gradient strokes aren't supported by the underlying framework, so line strokes stay solid.

Public API

• LineChartPainter(List<double> values, {Color? backgroundColor, List<Color>? areaGradientColors}) — connects values left to right with a light horizontal grid behind it.
• VerticalBarChartPainter(List<double> values, {Color? backgroundColor, List<Color>? barGradientColors}) — one bar per value, height normalized against the largest value.
• PieChartPainter(List<double> values, {Color? backgroundColor}) — donut-style pie chart, each value rendered as a proportional arc slice.
• HorizontalBarChartPainter(List<double> values, {Color? backgroundColor, List<Color>? barGradientColors}) — one bar per value against a track background, width normalized against the largest value.
• RadarChartPainter(List<String> axisLabels, List<RadarSeries> series, {double fillOpacity = 0.25}) — one overlaid, translucent-filled polygon per series, for comparing multiple items across shared axes. Needs 3+ axes; every series needs one value per axis.
• BubbleChartPainter(List<BubblePoint> points, {double minRadius = 8, double maxRadius = 36}) — one radial-gradient circle per point, positioned by x/y and sized by size.
• RadarSeries({required String label, required Color color, required List<double> values}) — one polygon on a RadarChartPainter.
• BubblePoint({required double x, required double y, required double size}) — one circle on a BubbleChartPainter.

Colors, spacing, and stroke width are otherwise fixed in each painter — data (and the optional styling above) is what you pass in. If a chart's data changes over time, wrap it in a StatefulWidget and rebuild with a new painter instance.

Example

See example/ for a full showcase app that switches between all six charts. Run it with:

cd example
dn pub get
dn run

License

MIT — see LICENSE.
